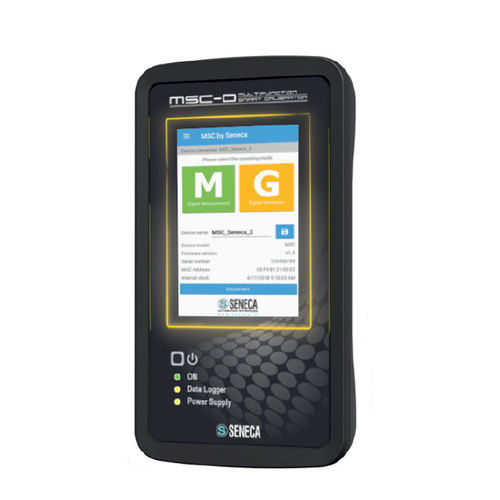

Calibrateur de température MSC-D

multifonctionde tensionde courant

Multifunction Smart Calibrator is a flexible and universal instrument for maintenance and testing of process sensors. This calibrator offers a precision class better than 0.05% for each type of input/output, in measurement or simulation of signals: analog, digital, temperature sensor, and load cell. This powerful calibrator provides advanced features such as automatic ramp generation (single or loop) and data logging with sharing/export of snapshots or scheduled data in .CSV format.Equipped with a rechargeable lithium polymer battery, the MSC can power external devices or sensors and can be used without continuous power supply with autonomy up to 20 hours. With a reading capacity of up to 100,000 measurements and full support for LabVIEW libraries, it is suitable for professional and industrial use by PLC programmers, maintenance technicians, technical support companies, measurement laboratories, device control and calibration activities, electronics laboratories, electromechanical workshops, and quality control activities.The device is supplied with a calibration report useful for verifying its metrological characteristics and for validating the accuracy and precision of the measured/generated signal during calibration sessions.Parameter configuration and data management are available from a desktop application for Windows PC (via the supplied microUSB cable) or a mobile application (for iOS and Android devices via Bluetooth connection).Technical Specifications:Power supply: 100-240 VAC mains via standard Micro USB battery chargerBattery: 1 Lithium Polymer (LiPo) 3400 mAhSwitching on: By button or automatic (depending on mains power supply)Autonomy: 4 hours (minimum at maximum load)Degree of protection: IP20Overvoltage protection: 240 Vac max without permanent damageOperating temperature: -20..50°C (not charging), 0..40°C during chargingLong-term storage temperature: 0..35°CHumidity: 30..90% non-condensingDimensions (WxHxD): 96 x 171 x 44 mmWeight: 395 gRejection: 50/60 HzSampling Frequency: 10 HzOperating Modes: Meter, Generator, Datalogger, RampsMemory: 16MB Flash, 8 MB RAMDisplay: 5-point capacitive touch, TFT-LCD 262k colors, 3.5", 53x71mm, 320x480 resolution, with backlightManagement systems: Touch display interface and WebServer with integrated multilingual APP (Italian, English, German, French, Spanish)Supplied with: (1) Portable case, (2) MSC-D with battery, (3) adapter, (4) USB charging cable, (5) factory calibration report, (6) test cablesCalibration report: On requestCertification: CEStandards: EN61326-1; EN61010-1Measurement Accuracy:Accuracy: 0.03% basic, 0.04% for currentResolution: 1 µA; 1 mV; 5 µV; 0.1°C; 0.1uV/VGeneration Accuracy:Accuracy: 0.03% basic, 0.04% for currentResolution: 1 µA; 1 mV; 5µV; 0.1°C; 0.02 Ohm; 0.1 uV/VInterfaces and Signals:Buttons: On / OffLED: Power on, Battery charge status, Datalogger onBuzzer: Overload and simulation errorsStandard bushings: 4 x 4mmThermocouple connection: Mini plug (7.9mm) for measurement and simulationCommunication:Micro USB: For firmware updatesWireless: Integrated 2.4 GHz WiFi (802.11 b/g/n, up to 150 Mbps); Access Point/Station modeEthernet: 1 Fast Ethernet 100 Tx port, Modbus TCP-IP protocol; max 8 TCP-IP clients, control web serverMeasuring Functions:Current: 0.1..24 mA active and passive; protection ± 28 VVoltage (V): 0..26 VVoltage (mV): -10mV..+90mVThermocouple: Type J, K, T, E, N, R, S, B, LThermoresistances (2,3,4 wires): Pt100, Pt500, Pt1000, Cu50, Cu100, Ni100, Ni120Load cell: 350 Ohm; -0.2..+3mV/VPulse: Max. count 1000 HzFrequency: 0.1..1000 HzGeneration Functions:Current: 0.1..24 mA active and passive; protection ± 28 VVoltage (V): 0.1..26 VVoltage (mV): -10mV..+90mVThermocouple: Type J, K, T, E, N, R, S, B, LThermoresistances (2 wires): Pt100, Pt500, Pt1000, Cu50, Cu100, Ni100, Ni120Load cell: 350 Ohm; -0.2..+3mV/VPulse: Min 0.5 ms (1..24V) number of pulses can be setFrequency: 0.1..1000 Hz; resolution 50µsData Logger:Data logger: YesSampling time: >500 msRamp Function:Signal: Current/Voltage/TC/RTD/Load cellFunctions: Single or LoopType: Maximum 9 segments, ramp resolution 100ms, minimum ramp 1 secondSettings and Signals:Functions menu: General setup (operation type, signal type, language, mains frequency 50/60Hz, std or expert mode), Measurement (voltage/current/passive current/thermocouples/resistance thermometers/bridge/pulses), Datalogger (start/stop/pause) and data visualization, Generation (voltage/current/passive current/thermocouples/thermoresistances/bridge/pulses), Generation of signals in ramp mode or with presets (10 for each mode)Error messages: Overvoltage (Voltage reading higher than 28 V), Undervoltage (Voltage reading lower than -0.2 V), Over-current (Current reading higher than 24 mA), Under current (reading lower than -0.1 mA), Resistance lower than 18 Ohm, Resistance higher than 400 Ohm, Load cell not powered correctly, Value flashing (Voltage/current/resistance/bridge generation unsuccessful)
