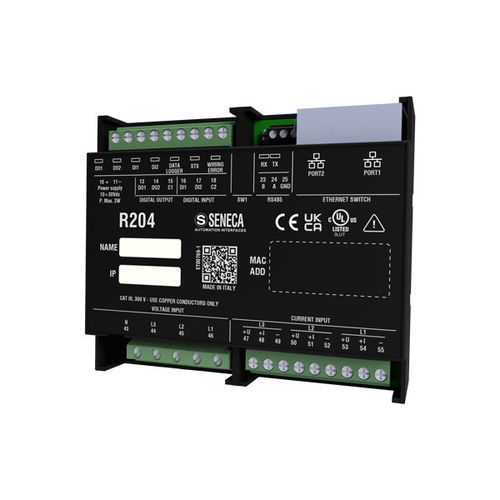

Appareil de mesure de puissance énergimètre R204-2-L

numériquesur rail DINmonophasé

ModBUS Energy power meter with universal input and FTP, Post http, MQTT communication, UL listedR204 is an extremely versatile Universal Input Energy power meter with UL certification and a wide range of current measurement inputs. It can handle voltage-transduced currents, direct voltages, and Rogowski sensors with voltage output up to 333 mV. This instrument offers multiple insertion modes, including single-phase and three-phase 3/4-wire types. It is fully compatible with a range of communication protocols, including ModBUS RTU, ModBUS TCP-IP, and Peer-To-Peer.The module features a compact design with a depth of only 32 mm, enabling daisy-chain connection with automatic fault-bypass protection. The power meter provides voltage (0-10Vdc) and current (0-4-20mA) output signals. In addition, it offers advanced capabilities for measuring and recording harmonics up to the 55th order, with THD (total harmonic distortion) calculation, enabling a complete understanding of power quality.This device also performs the function of a Web Server and datalogger, allowing users to easily access key parameters and access data efficiently. The user also has the option of transferring data via FTP. Some of its advanced features include:Universal Input: Each device can be configured to accept single-phase, three-phase, TA, and TA with mV or Rogowski sensor inputs as required.MQTT and HTTP POST Supported: Integrating advanced protocols, it offers instant access to real-time energy data wherever you are.8MB Data Memory: Equipped with enhanced memory for data/event storage, harmonics up to 55°A and THD, ideal for system analysis and optimization.Maximum Flexibility: Also in the choice of power supply and Ethernet ports through which R204 offers ModBUS TCP-IP / ModBUS RTU gateway functionsDigital I/O Channels: Features 2 digital outputs and 2 independent inputs with 32-bit meters for active, reactive, and apparent energy metering.With our R204 power meter, you get a reliable and versatile tool for monitoring and managing your power grid.Technical Specifications:Power Supply: 10..30 VdcMax Power Consumption: 2.8 WIsolation: 3,500 Vac (to/from power circuits), 1,500 Vac (other circuits)Status Indicators: Power supply, digital channels, RS485 communication, data logger status, wiring error, Ethernet ports activityInstallation category: 600 V CAT IIIProgramming: via Web Server. Through the SDD software, it is possible to locate the device and easily access it.Precision class: 0.2% for voltage/current; 0.5% for powerFlash memory: 8 MBNetwork Features: Dual Daisy Chain Ethernet Connection, LAN fault bypass, Max 32 Peer-to-Peer Rules (I/O Mirror) - No Master required, ModBUS Passthrough (TCP-IP to RS485), Identification and configuration IP, MAC, and Firmware via SDD toolEnergy Features: Energy metering (on output digital output) No. 2 incremental counters 32 bits on digital inputs @5kHzType of insertion / Connection mode: Single-phase, 3-phase 3-wire, 3-phase 4-wire, CT, CT with mV output, Rogowski transducers, AronFrontal Protection degree: IP20Mounting: DIN RAIL 35 mm guideConnections: Screw terminalsOperating temperature: -25..+65 °CDimensions: 107x90x32 mmWeight: 170 gCase: PC/ABS self-extinguishing UL94-V0, black colorStandard: CE, ULVoltage/current inputsPhase voltage measurement: Voltage up to 600 Vac, freq. 45 ÷ 65 Hz; VT with output up to 600 Vac concerning neutralPhase current measurement: AT with output 1-5 A f.s.; AT with output mV or Rogowski up to 250 mVIntegrated I/OsDigital inputs: Nr.2 activatable with voltage from 12 to 24V and 2 digital counters @ 50 HzDigital outputs: Nr.2 capacity Imax = 50 mA Vmax = 28VCOMMUNICATIONSerialInterfaces: Nr.1 RS485 portProtocol: ModBUS RTUDistance: Up to 1,200 mConnectivity: Max 128 nodesEthernetPorts: Nr.2 Ethernet Ports 100 MbpsProtocol: ModBUS TCP-IP, MQTT, HTTP POST, P2P, FTPConnections: Ethernet switch with Daisy Chain protection
