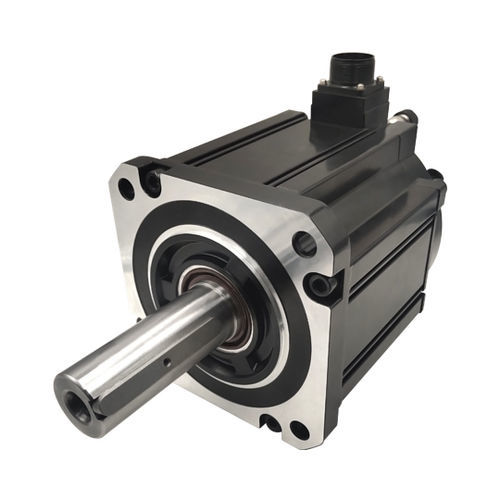

Servomoteur triphasé 180B series

380 VIP65fort couple

Product Details 180 B Series 17-bit/23-bit Absolute Value Five-pair Pole Servo Motors Features: 17/23-bit absolute value photoelectric encoder, with high-end and high responsiveness characteristics. Speed: High-speed performance is good. Generally, the rated speed can reach 3000 rpm, and the maximum speed can reach 6000 rpm. Adaptability: Strong overload resistant ability, able to bear three times the rated torque load. Particularly suitable for occasions with load fluctuations and requiring quick starts. Stability: Runs smoothly at low speeds, without the step-like running phenomenon similar to stepper motors. Suitable for occasions with high speed response requirements. Opportunity: The dynamic response time for acceleration and deceleration of the motor is short, generally within a few dozen milliseconds. Comfort: Heat generation and noise are significantly reduced. Motor Specifications Motor Model180BST-M18615180BST-M28415180BST-M35015180BST-M48015 Rated Power (W)2900440055007500 Rated Line Voltage (V)380380380380 Rated Line Current (A)10.014.517.823.0 Rated Speed (rpm)1500150015001500 Rated Torque (Nm)18.628.43548 Max Torque (Nm)547187.596 Back EMF (V/1000min)137.5153172170 Torque Constant (N.m/A)1.861.951.982.09 Rotor Inertia (kg·m²)4.4X10⁻⁶6.6X10⁻⁶10.2X10⁻⁶14.6X10⁻⁶ Rotor Inertia with Brake (kg·m²)5.9X10⁻⁶8.0X10⁻⁶11.0X10⁻⁶15.6X10⁻⁶ Winding (Phase) Resistance (Ohm)1.10.90.620.42 Winding Inductance (mH)15.213.910.98.7 Electrical Time Constant (ms)13.815.417.515.9 Maximum Speed (rpm)2500200020002000 Encoder TypePhotoelectric Pulse Encoder/Absolute Value Encoder/Resolver… Motor Insulation ClassClass F Protection ClassIP65 Operating EnvironmentAmbient Temperature: –20°C – 40°C; Relative Humidity: ≤90% (non-condensing) Weight Winding TerminalTerminal Color – U (Red), V (Yellow), W (Blue), PE (Green-Yellow) Quantity of Output Wires4 Incremental Encoder Connector (15-pin)Terminal Numbers: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 1Terminal Leads: 5V, 0V, A+, B+, Z+, A-, B-, Z-, U+, V+, W+, U-, V-, W-, PE Absolute Value Encoder Connector (7-pin)Terminal Numbers: 2, 3, 4, 6, 7, 10Terminal Leads: E-, E+, SD-, 0V, SD+, +5V, PE L – Without brake176200237283 L – With brake224248285331 Shaft Diameter LR7979113113 Shaft Diameter S35(-0.01 – 0)35(-0.01 – 0)42(0 – 0.016)42(0 – 0.016) Keyway Length QK60609090 Keyway Width W10101212 Shaft End Thread MM12 Depth 25 Technical Specifications / Features: 17/23-bit absolute value photoelectric encoder High-end and high responsiveness Rated speed up to 3000 rpm, max speed up to 6000 rpm Strong overload resistance (up to 3x rated torque) Smooth operation at low speed, no stepper-motor-like phenomena Short dynamic response time (tens of milliseconds) Significantly reduced heat and noise Rated voltage: 380V Protection class: IP65 Insulation class: F Operating temperature: –20°C to 40°C Relative humidity: ≤90% (non-condensing)
