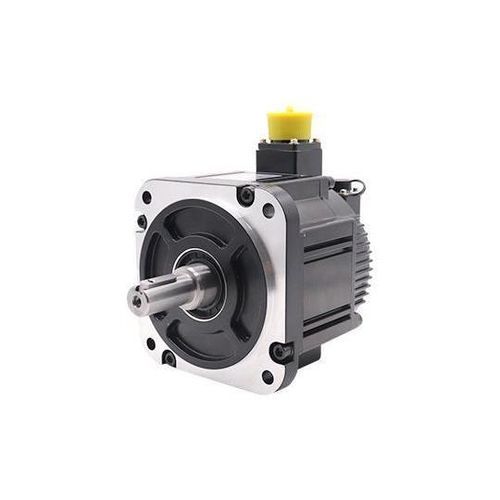

Servomoteur 220 V 110B series

IP6510 pôles

Features: 17-bit/23-bit absolute value photoelectric encoder, with high-end and high responsiveness. Speed: Good high-speed performance, generally rated speed can reach 3000 rpm, maximum speed can reach 6000 rpm. Adaptability: Strong overload resistance, can withstand load three times the rated torque, especially suitable for occasions with instantaneous load fluctuations and requiring fast start. Stability: Smooth low-speed operation, no stepping operation phenomenon similar to stepper motors will occur during low-speed operation. Suitable for occasions with high-speed response requirements. Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds. Comfort: Heat and noise are significantly reduced. Product specifications: ModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Body Length (mm)Datasheet PDF 110BS1200C2-Standard2205.2––140 110BS1200C2-Brake Z2205.2––165.5 110BS1800C2-Standard2206.8––163 110BS1800C2-Brake Z2206.8––188.5 Motor Specifications: Parameter110B51200C2-17D/17N110B51200C2-17DZ/17NZ110B51800C2-17D/17N110B51800C2-17DZ/17NZ Rated Power (W)1200120018001800 Rated Voltage (V)220220220220 Rated Current (A)5.25.26.86.8 Instantaneous Max Current (A)16.416.420.520.5 Rated Torque (N·m)3.823.825.735.73 Instantaneous Max Torque (N·m)11.4611.4617.1917.19 Rated Speed (rpm)3000300030003000 Peak Speed (rpm)4500450040004000 Back EMF (V/Krpm)45455151 Torque Constant (N·m/A)0.730.730.840.84 Line Resistance (Ω)0.790.790.70.7 D-Axis Inductance (mH)3.93.93.23.2 Q-Axis Inductance (mH)5.25.24.34.3 Electrical Time Constant (ms)9.99.99.19.1 BrakeWithout BrakeWith BrakeWithout BrakeWith Brake Rotor Inertia (10⁻⁴kg·m²)5.26.47.89.0 Weight (kg)4.45.45.96.9 Body Length (mm)140165.5163188.5 Pole Number10101010 Encoder Resolution17D (Single-turn)17DZ (Multi-turn)17N (Single-turn)17NZ (Multi-turn) Insulation ClassFFFF Protection RatingIP65IP65IP65IP65 Outline drawing: Key Features / Technical Specifications: 17-bit/23-bit absolute value photoelectric encoder Rated voltage: 220V Rated power: 1200W / 1800W Rated current: 5.2A / 6.8A Rated torque: 3.82 N·m / 5.73 N·m Rated speed: 3000 rpm Peak speed: up to 6000 rpm Protection rating: IP65 Insulation class: F Pole number: 10 Encoder: Single-turn and multi-turn options Brake options: With or without brake
