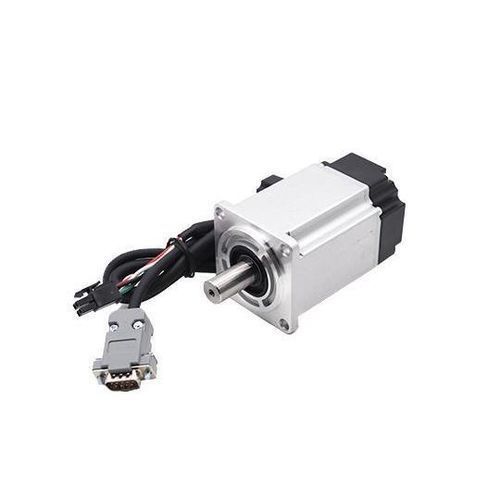

Servomoteur AC 60B series

220 Vavec codeuren acier inoxydable

Product Features:17-bit/23-bit absolute value photoelectric encoder, offering high-end performance and high responsiveness.Speed: Excellent high-speed performance, with a typical rated speed up to 3000 rpm and a maximum speed up to 6000 rpm.Adaptability: Strong overload resistance, can withstand a load three times the rated torque, especially suitable for applications with instantaneous load fluctuations and requiring rapid start-up.Stability: Smooth operation at low speed, no stepper-like operation phenomena at low speed. Suitable for applications requiring quick response.Opportunity: The dynamic response time for motor acceleration and deceleration is short, generally within a few tens of milliseconds.Comfort: Heat and noise are significantly reduced.Product Specifications:ModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Body Length (mm)60BST-C00630-2B12201.60.64Without brake74.560BST-C00630-2B1-Z2201.60.64With brake9860BST-C01330-2B12202.61.27Without brake9360BST-C01330-2B1-Z2202.61.27With brake116.5Motor Specifications:Motor Model60BST-CO0630-2B160BST-CO0630-2B1-Z60BST-CO1330-2B160BST-CO1330-2B1-ZRated Voltage (V)220220220220Rated Power (W)200200400400Rated Current (A)1.61.62.62.6Rated Torque (N·m)0.640.641.271.27Rated Speed (rpm)3000±10%3000±10%3000±10%3000±10%Max Speed (rpm)3600±10%3600±10%3600±10%3600±10%Line Back EMF Constant (V/Krpm)25253131Line Resistance (Ohm)5.85.84.054.05Line Inductance (mH)9.89.86.56.5Moment of Inertia (10^3kg·m^2)0.280.280.520.52Torque Constant (Nm/A)0.40.40.490.49Electrical Time Constant (ms)1.691.691.61.6BrakeWithout brakeWith brakeWithout brakeWith brakeBody Length (mm)74.59893116.5Outline Drawing:Encoder: 17-bit/23-bit absolute value photoelectric encoderRated speed: 3000 rpmMax speed: 6000 rpmOverload resistance: up to 3x rated torqueDynamic response: tens of millisecondsLow heat and noise
