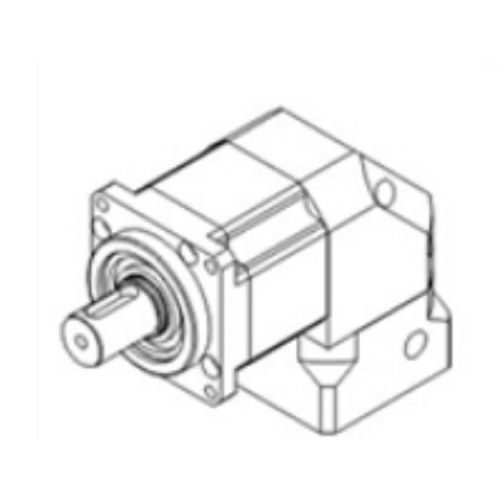

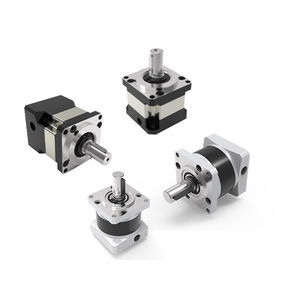

Réducteur planétaire WPF60 series

orthogonalà arbre creuxde précision

The planetary output support of the reducer adopts an integrated nut to eliminate axial play design. The front and rear bearings are distributed over a large span inside the integrated box body, forming an ultra-strong integrated structure to ensure high torsional rigidity, ultra-strong radial load capacity, and excellent axial load capacity. The processing and finishing process is adopted to ensure extremely high coaxiality.Dimensional drawing of the reducerMain technical parametersLevelFirst stageSecond stageThird stageReduction ratio3/4/5/7/1012/16/20/25/28/35/40/50/7080/100/125/140/175/200/250/700/1000Body length150.5166.5182.5Maximum radial force400N500N800NMaximum axial force300N390N700NFull load efficiency≥94%≥92%≥88%Weight2.0 kg2.3 kg2.6 kgLifespan≥20000h≥20000h≥20000hNominal input speed3000 rpm3000 rpm3000 rpmMaximum input speed8000 rpm8000 rpm8000 rpmMotor power400W400W400WGear precision grade6 GB/T10095 – 20086 GB/T10095 – 20086 GB/T10095 – 2008Operating temperature–25°~ +90°–25°~ +90°–25°~ +90°Protection degreeIP65IP65IP65Lubrication methodLong-acting lubricationLong-acting lubricationLong-acting lubricationInstallation methodFlangeFlangeFlangeTechnical specifications / FeaturesUltra-strong integrated structure for high torsional rigidityHigh radial and axial load capacityHigh coaxiality ensured by advanced processingMultiple reduction ratios available (see table)IP65 protection ratingLong-acting lubricationFlange installationOperating temperature: –25°~ +90°Gear precision grade: 6 GB/T10095 – 2008Nominal input speed: 3000 rpm, max input speed: 8000 rpmMotor power: 400WLifespan: ≥20000h
