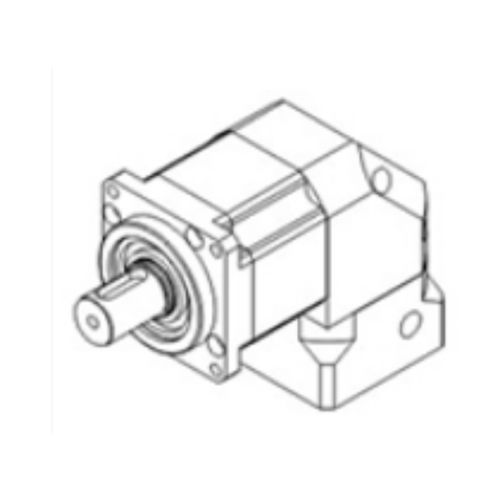

Réducteur planétaire WPF42 series

orthogonalà arbre creuxà bride

The planetary output support of the gearbox adopts an integrated nut to eliminate axial play design. The front and rear bearings are distributed over a large span inside the integrated box body, forming an ultra-strong integrated structure to ensure high torsional rigidity, ultra-strong radial load capacity, and excellent axial load capacity. The processing and finishing process is adopted to ensure extremely high coaxiality.Dimensional diagram of the gearboxMain technical parametersLevelFirst stageSecond stageReduction ratio4/5/816/20/25/32/40Body length72.284.2Maximum radial force280N320NMaximum axial force200N240NFull load efficiency≥90%≥86%Weight0.7kg0.9kgLifespan≥20000h≥20000hNominal input speed2500rpm3000rpmMaximum input speed4500rpm6000rpmGear precision quality6 GB/T10095 – 20086 GB/T10095 – 2008Operating temperature–25°~ +90°–25°~ +90°Protection degreeIP65IP65Lubrication methodLong-acting lubricationLong-acting lubricationInstallation methodFlangeFlangeCategory: GearboxTags: AC servo motor and driverTechnical characteristics / specifications:Planetary output support with integrated nut eliminates axial playFront and rear bearings distributed over a large span for high rigidityUltra-strong integrated structure for high torsional rigidityHigh radial and axial load capacityHigh coaxiality ensured by advanced processingReduction ratios: 4/5/8 (1st stage), 16/20/25/32/40 (2nd stage)Body length: 72.2 mm (1st stage), 84.2 mm (2nd stage)Max radial force: 280N (1st), 320N (2nd)Max axial force: 200N (1st), 240N (2nd)Full load efficiency: ≥90% (1st), ≥86% (2nd)Weight: 0.7kg (1st), 0.9kg (2nd)Lifespan: ≥20000hNominal input speed: 2500rpm (1st), 3000rpm (2nd)Max input speed: 4500rpm (1st), 6000rpm (2nd)Gear precision: 6 GB/T10095 – 2008Operating temperature: –25°~ +90°Protection: IP65Lubrication: Long-actingInstallation: Flange
