Outil de diagnostic de surveillance TSS-1000

en ligned'accès au réseau

Product overview

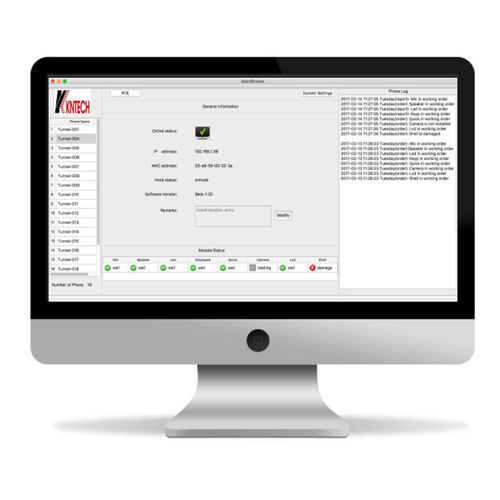

KNTECH Telephone Management System is designed for control offices to monitor Emergency Call Points in real time to ensure all phone stations are in good working status. The system notifies the control office immediately if a telephone is faulty so maintenance can be dispatched. TSS-1000 runs on a Windows PC and consists of one Windows software package plus the Emergency Call Point KNSP-19. All Emergency Call Point devices include monitoring and self-diagnostic functionality, including automatic self-test of microphone and loudspeaker with a configurable schedule for automatic self-tests.

Operation and monitoring
At least every 24 hours, all Emergency Call Points send their health/fault status to the TSS-1000 control room for display. Monitoring data can also be made available to relevant subscribers for maintenance purposes. The system includes symbols, icons and color codes to identify object monitoring statuses for easy operation. The system is highly reliable, with simple installation and operation: run the TSS-1000 application on a compatible PC. Phone calls have higher priority while a self-checking task is performed.

Remote testing and programmable diagnostics

• Self monitoring and diagnosis
• The telephone will report to the TSS-1000 in real time when the following occurs:
• a. Keypad or emergency call button gets stuck
• b. Handset microphone or receiver broken, or handset cord broken
• c. Ring indicator LED broken
• d. Buzzer broken
• e. Telephone box opened

Caractéristiques / spécifications techniques

• Model: KNSP-19 Telephone with Diagnostic System
• Construction: Robust aluminium alloy die-cast body
• Dimensions (W*H*D): 320*205*120 mm
• Weight: 5.7 kg
• Operating Temperature: -25°F to +158°F / -40°C to +70°C
• Relative Humidity: Up to 95% non-condensing
• Protection: IP66, vandal-resistant and water-resistant design
• Communication: Full duplex 2-way handset communication
• Call Control Signaling: SIP Info (DTMF), RFC 2833 (DTMF)
• Audio Codes: G.711, G.722, G.729
• Power: Power over Ethernet IEEE802.3af (Class 0); local power 12 V DC; Idle 2 W, Max 10 W
• Auxiliary Contacts: 1 Aux Output, dry contact
• Contact Ratings: Resistive load; Rated load: 0.3 A at 125 VAC; 1 A at 30 VDC; Rated carry current: 1 A; Max switching voltage: 125 VAC, 60 VDC; Max switching current: 1 A
• Network: 10/100 Base-TX Ethernet, RJ45 connectors, Cat5e or better
• IP Protocols: IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
• LAN Protocols / Network features: Power over Ethernet (PoE 802.3af); network access; Control (IEEE 802.1x); STP (IEEE 802.1d); RSTP (IEEE 802.1d-2004)
• Programming: Non-volatile flash memory programming and configuration through Web GUI
• Management and Operation: DHCP and static IP; remote automatic software upgrade; centralized monitoring; status LED
• Echo cancellation: G.167 / G.168
• Keypad: 0–9 free dial, last number redial, speed dial 1 and speed dial 2
