Système de télégestion NMSX1

Overview

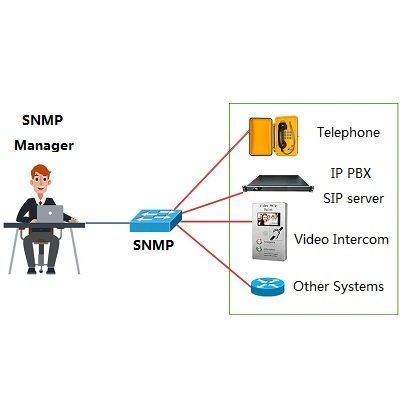

The NMS server software is based on a BS architecture. The installation and operation environment is a Linux server and it is accessed through a web browser (WEB-GUI). The system performs network management on all devices in the system based on the SNMP protocol. Managed devices include IP PBX, Recorder, office telephones, subway station telephones, tunnel telephones and all telephones registered to the system.

Management capabilities

• Map navigation to quickly locate the location of each phone terminal.
• Real-time view of the health status of each managed object.
• Immediate reporting of any alarms from terminals, IP PBX or Recorder.
• Real-time monitoring, health detection and alarm report lists.

Software & Licenses

• Software Model number: S- NMS-X1-0.0.4-13
• Description: Network Management System software
• License SKU: KNNMS-X1-SNMP-0.0.4-13 (KNNMS-X1 Network Management system license)
• Licence SKU for management authority 28 accounts
• Dispatcher Agent SKU: KNNMS-X1-SNMP-0.0.4-13-AG28
• Management Admin SKU: KNNMS-X1-SNMP-0.0.4-13-AD28

Hardware & Interfaces

• Server hardware SKU: KNSERBER-HW1
• Trunking gateway: interface to trunking/radio systems.
• VoIP gateway: interface to other telephone systems.
• SIP protocol: interfaces to other PA systems and to SCADA systems.

System access & GUI
Browser log-in via WEB-GUI. Features include dispatcher map navigation, terminal location, alarm reporting and administrative system management.

Application
The SNMP unified network management system is mainly used in large telephone dispatching systems. Typical deployments: subways, stations and industrial construction sites. The system can manage terminals in batches (by class) or manage single terminals.

Caractéristiques / Spécifications techniques

• Installation / OS: Linux server, WEB-GUI access
• Protocol: SNMP for device management; SIP for PA and SCADA interworking
• Managed object types: IP PBX, Recorder, office telephones, subway/tunnel telephones, registered telephones
• Software model: S- NMS-X1-0.0.4-13
• Product model: NMSX1
• License SKUs: KNNMS-X1-SNMP-0.0.4-13 (agent/admin variants for 28 accounts)
• Server hardware SKU: KNSERBER-HW1
• Main interfaces: trunking gateway, VoIP gateway, SIP protocol interfaces
