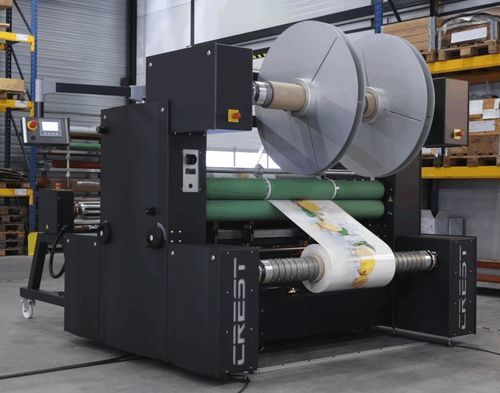

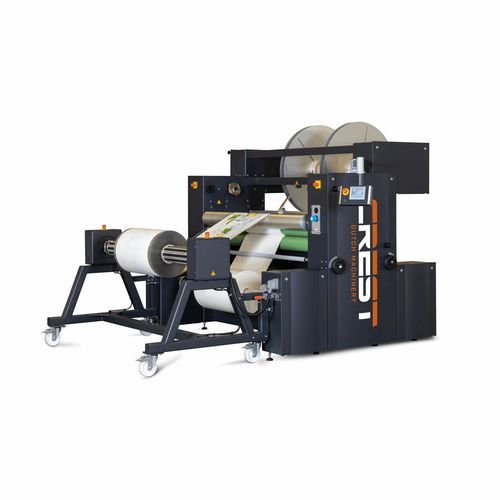

Machine à laminer rouleaux à rouleaux R2R

automatiséeavec refendeuseindustrielle

Overview
The Crest R2R Laminator Slitter combines protective and functional lamination, heavy-duty shear-cut trimming and precision tension-controlled rewinding in a single continuous workflow. Configurable around web width, material and production process. One pass, one operator, one finished roll. Originally engineered for printed PET on self-adhesive PE foam and thin PVC, configurable for a broader range of printed roll materials and converting requirements.

Key platform features

• Roll-to-roll converting integrated with lamination, trimming and rewind
• Heavy-duty pneumatic shear-cut trimming for thick and rigid substrates
• Automated web tension regulation via closed feedback loop (unwind through rewind)
• Adjustable, heatable laminating rollers handling a wide range of substrates and adhesive systems
• High torque unwind for rigid substrates and delicate handling at rewind
• Configurable platform: web width, lamination setup, trimming configuration, backing application and rewind tension
• PLC + HMI control

Three functions. One pass.

• 01 / Laminate — Apply protective films and functional layers in one workflow: self-adhesive PE foam, thin PVC backing, protective laminate over UV-cured, latex, solvent and eco-solvent printed media. Adjustable, heatable laminating rollers handle diverse substrates and adhesive systems.
• 02 / Trim — Heavy-duty pneumatic shear-cut trimming. Cleanly cuts the toughest substrates, including thick PVC, without breaking, deforming or cracking material; provides precise, consistent finished width straight off the line.
• 03 / Rewind — Automated web tension regulation via a closed feedback loop from unwind through precision rewind. Wide tension range with high torque on unwind and controlled delicate handling at rewind to protect print and laminate quality.

Applications / Where it is used

• Print finishing & sticker production — converting printed PVC, PET and self-adhesive vinyl onto foam or thin PVC for sticker, decal and label converters
• Wide format & decorative roll media — wallcoverings, canvas, banners, floor graphics and decorative wallpapers
• Custom configurations for specialty printed roll materials and technical substrates; platform built around material, web width and production process

Suitable materials

• Printed wallcoverings
• Decorative wallpapers
• Canvas prints
• Banner media
• Floor graphics
• UV-cured, latex, solvent & eco-solvent prints
• Foam backing layers and self-adhesive vinyl
• Specialty printed media

Warranty
5-year warranty applies when a service agreement is in place.

Caractéristiques / spécifications techniques

• Integrated functions: lamination, heavy-duty shear-cut trimming, precision tension-controlled rewinding
• Automated web tension regulation with closed feedback loop across unwind, lamination, trimming and rewind
• High torque unwind drive for rigid substrates; controlled low-tension rewind for delicate media
• Pneumatic shear-cut trimming suitable for thick PVC and heavy-duty substrates
• Adjustable, heatable laminating rollers for multiple adhesive systems
• Configurable around material type, web width, lamination setup, trimming configuration, backing application and rewind tension
• Operator interface: PLC + HMI control
• Suitable for UV-cured, latex, solvent and eco-solvent printed media
• Designed to reduce handling, alignment errors and intermediate quality loss between machines
• Datasheet available (product datasheet in PDF)
