Banc d'étalonnage et d'essai de calibration MT153

de champ électromagnétiquede vibrationtempérature

Product Overview

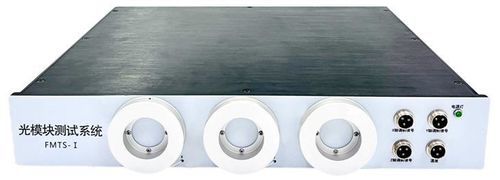

The MT153 Three-Axis High-Precision Optical Module Test System (FMTS-II) is designed for bias stability testing of 1550 nm Fiber Optic Gyroscope (FOG) fiber coil modules (fiber coil assemblies). The system adopts a three-axis high-precision interferometric digital closed-loop FOG architecture and integrates complete electronic and optical subsystems. By fusion splicing or connecting the pigtails of the fiber coil module to the system, angular rate data output and bias testing can be directly performed. Test accuracy is better than 0.0005 °/h. The system supports fiber coil lengths ranging from 700 m to 10,000 m. The chassis integrates a switching power supply and voltage regulation circuit, enabling direct operation with a 220 VAC power source. The front panel includes status indicators, optical fiber jumpers, temperature sensor interfaces, Y-waveguide modulation ports and various other interfaces. The system communicates with a computer via a standard USB interface and includes dedicated test software for automatic data acquisition, calculation and storage. Through the software interface users can configure parameters such as fiber coil length, scale factor, test duration and averaging times. The system features high accuracy, fast startup, no calibration requirement, user-friendly operation, stable performance and wide compatibility with various fiber coil lengths.

Application
Fiber coil bias stability testing
Full-temperature bias stability testing of fiber coils
Fiber coil magnetic field sensitivity testing
Fiber coil vibration testing

Features

• Ultra-low error
• Easy operation
• Fast startup
• Stable performance
• No calibration required
• Wide fiber coil length compatibility range

Typical Specifications (summary)
Dimensions (mm): 430 × 70 × 360
Weight (kg): ≤ 5
Operating Temperature (°C): 5 ~ 55
Startup Time (s): ≤ 10
Supply Voltage (V): 110 ~ 250 (50 Hz, AC)
Rated Power Consumption (W): 10
Test Accuracy (°/h): ≤ 0.0005
Maximum Continuous Test Duration (h): 27
Supported Fiber Coil Length (m): 700 ~ 10000
Measurable Y-Waveguide Half-Wave Voltage (V): 3 ~ 4.4
Number of Channels: 3
Fiber Connectors: 3 × 1
Fiber Jumper Interfaces: 3 × 1
Temperature Sensors: 3
Indicators: Power Indicator, Power-On Indicator
Communication Interface: UART / USB
Fiber Coil Length Configuration: Configured via test software
Y-Waveguide Half-Wave Voltage Configuration: Configured via test software
Configuration Time (s): ≤ 10
Supported Operating Systems for Test Software: Windows XP, Windows 2000, Windows 7, Windows 10, Windows 11, etc.

Customization Information

• Appearance, logo and labeling can be customized according to customer requirements
• Chassis configuration and test software can be customized according to customer requirements
• Optical and electronic circuits can be customized according to customer requirements

Caractéristiques / spécifications techniques

• Modèle: MT153 Three-Axis High-Precision Optical Module Test System (FMTS-II)
• Fonction principale: Bias stability testing and angular rate data output for 1550 nm FOG fiber coil modules
• Architecture: Three-axis interferometric digital closed-loop fiber optic gyroscope
• Plage longueur de bobine supportée: 700 m – 10,000 m
• Précision de test: ≤ 0.0005 °/h
• Alimentation: 110 ~ 250 V (50 Hz, AC), intégration de switching power supply et voltage regulation
• Consommation: 10 W (rated)
• Temps de démarrage: ≤ 10 s
• Durée maximale continue de test: 27 h
• Interfaces: USB (communication), UART
• Connexions fibre: 3 × 1 connectors et 3 × 1 fiber jumper interfaces
• Capteurs de température: 3
• Measurable Y-waveguide half-wave voltage: 3 ~ 4.4 V
• Systèmes d'exploitation supportés pour le logiciel de test: Windows XP/2000/7/10/11
