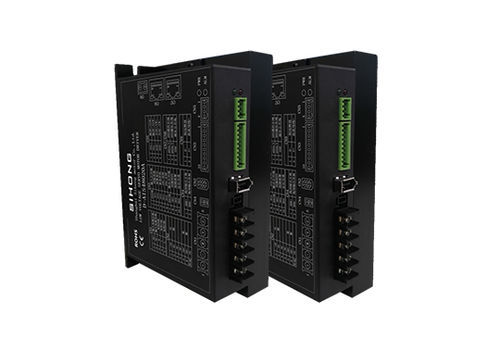

Servo-variateur DC D – AIS48025A

ModbusUSBpour PC

Product DetailsIt features high stability, high positioning accuracy, high drive response, low noise, low heat generation, well-structured design, strong overload capacity, practical and rich functions, and simple and convenient application. It has protections against over-voltage, under-voltage, overspeed, overcurrent, overload, encoder anomalies, position deviation, stalling, parameter anomalies, etc.Technical SpecificationsDriver ModelVoltage Range (V)Rated Current (A)D – AIS24008A24 – 368D – AIS48015A24 – 4815D – AIS48025A24 – 6025D – AIS48050A24 – 7250D – AIS48100A36 – 72100D – AIS72200A48 – 96200D – AIS72300A48 – 96300Control Method① Position control ② Speed control ③ Torque control ④ Communication controlControl FeaturesSpeed frequency response: ≥200Hz, Pulse frequency received ≤200kHz, Speed fluctuation rate: < ±0.03 (Load 0 – 100%): < ±0.02×(0.9 – 1.1) Supply voltageMonitoring FunctionCurrent speed, DI input, DO output, Current position, Accumulation of command input pulses, Average load rate, Number of position deviations, Motor phase current, Bus voltage value, Module temperature, Alarm record, Command pulse frequency corresponding speed, Operating status, etc.Home – Return Function13 Types of home (search) return modes, and Home – Point offset functionRs485 FunctionFollows standard Modbus – RTU protocol, One-to-two dual communication interface for easy networking and parallel connectionDriver Installation DimensionsProduct model: D – AIS48025ARated voltage: 24 – 60VRated current: 25ASplit-type Driver Hardware InterfaceApplicable driver models: D – AISXX005A / D – AISXX0015A / D – AISXX0025A / D – AISXX0040A / D – AISXX00100A / D – AISXX00200ASplit-type AI Motor Drive Interface DiagramSerial No.SymbolFunctionRemarksCN11UMotor U-phase. Power cable interface JVW for motor adaptation2VMotor V-phase3WMotor W-phase4DC–Negative pole of input power. External DC input power must distinguish positive and negative poles; voltage range: DC48V5DC+Positive pole of input powerCN215V+Motor encoder power interface. Power interface for adapting motor encoder2GNDPower interface3NCEmpty terminal. No function4NCEmpty terminal. No function5SD+Motor encoder communication interface. Communication interface for adapting motor encoder6SD–CN31DI–COMCommon terminal for input signals. When DI–COM is connected to positive pole, negative DI control is effective; when connected to negative pole, positive DI control is effective2DI1Input signal terminal 1. Factory default: Servo enable3DI2Input signal terminal 2. Factory default: Alarm reset4DI3Input signal terminal 3. Factory default: Emergency stop5DI4Input signal terminal 4. Factory default: JOG positive jogging6DI5Input signal terminal 5. Factory default: JOG negative jogging7DO–COMCommon terminal for output signals. When DO–COM is connected to positive pole, positive DO action is effective; when connected to negative pole, negative DO action is effective8DO1Output signal terminal 1. Factory default: Servo ready9DO2Output signal terminal 2. Factory default: Fault alarm output10DO3Output signal terminal 3. Factory default: Positioning completion outputCN41BRK+Positive pole of brake output. Interface for adapting mechanical brake (brake) of the motor2BRK–Negative pole of brake outputReference Table for Selection Specifications of Split-type Driver Interface CN9 Brake Discharge ResistorSplit-type Driver ModelRated Output CurrentExternal Brake Resistor Value RequirementExternal Brake Resistor Power RequirementD – AISXX008A8A10 ohms – 30 ohms rangeAbove 100WD – AISXX0015A15A10 ohms – 30 ohms rangeAbove 100WD – AISXX0025A25A10 ohms – 30 ohms rangeAbove 100WD – AISXX0050A50A5 ohms – 15 ohms rangeAbove 200WD – AISXX00100A100A5 ohms – 15 ohms rangeAbove 200WD – AISXX00200A200A5 ohms – 15 ohms rangeAbove 200WStandard Wiring DiagramInput Power Wiring: Input power terminals must strictly distinguish positive and negative poles. The input power voltage range may vary by model. Refer to the hardware interface wiring for the corresponding model.Note: This product has a certain overload capacity. When selecting an external switching power supply, the output capacity should be 1.5 times the rated current of this product. The rated current is indicated on the nameplate.Pulse Signal Wiring:Supports wide voltage pulse input 5 – 24V, max pulse frequency 200kHz.Recommended to use double-shielded wires for pulse control lines and avoid routing with high-current lines to protect against strong external magnetic interference.DI and DO Terminal Wiring:Input terminal control voltage valid at DC12 – 24V.Each DI/DO can be freely assigned different functions, but the same function cannot be assigned to multiple DIs/DOs.RS485 Communication Wiring:For multi-slave connection, if communication signal noise is high, it is recommended to add a 120-ohm terminal resistor at the last slave to ensure communication quality.Host Computer Debugging Connection:Generally, a computer does not have a direct 485 interface, and a USB-to-485 converter is required to connect to the slave drive.PC debugging software can be downloaded from the official website for user convenience.Technical Features / SpecificationsModel: D – AIS48025AVoltage range: 24 – 60VRated current: 25AControl methods: Position, speed, torque, communicationRS485 Modbus RTU protocolProtections: Over-voltage, under-voltage, overcurrent, overload, encoder error, position deviation, stalling, parameter errorMonitoring: Speed, current, position, temperature, alarm log, etc.
