bague d'arrêt
03162

Ajouter à mes favoris dans MyDirectIndustry
Ajouter au comparateur Retirer du comparateur

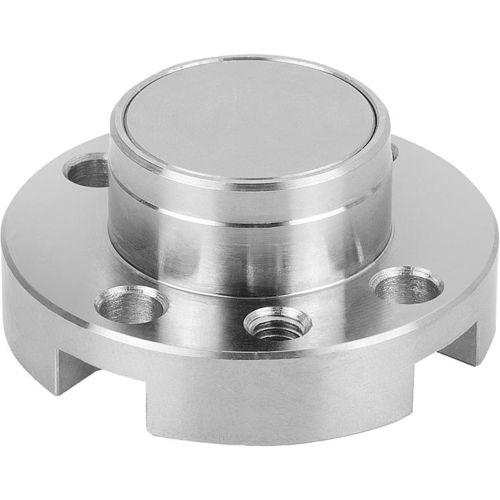

bague d'arrêt bague d'arrêt - 03162
{{requestButtons}}

Description

Locating bushes for pneumatic locating cylinder

Material:
Carbon steel.

Version:
nickel-plated.

Note:
Locating bushes are placed in fixture or interchangeable subplates and form the counterpart to the locating cylinder.
The locating bushes are centred in a reamed hole and then fastened with 4 screws.
The balls of the locating cylinder engage in the groove in the locating bush, thereby forming a fast, secure and highly accurate changeover unit, and reducing setup and changeover times.
