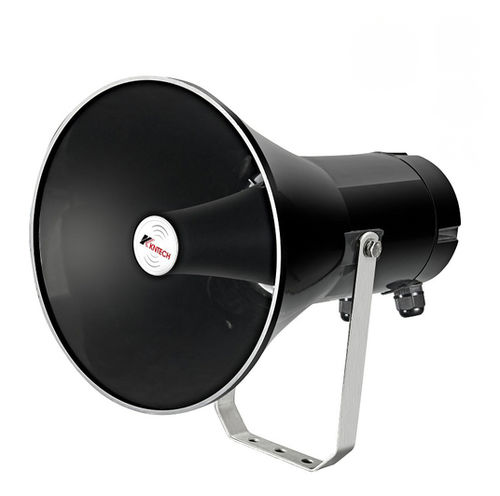

Klaxon d'alarme anti-explosion KNSIPLB-Ex15

à cornetpour environnement difficiled'intérieur/d'extérieur

Explosion-proof IP Network Horn Speaker KNSIPLB-Ex15 is a simple-to-install explosion-proof loudspeaker that provides clear, long-range speech for remote speaking in video surveillance applications. It enables an operator to remotely address people and deter unwanted activity and can play pre-recorded audio files when manually or automatically triggered in response to an alarm event. The speaker integrates with Voice over IP (VoIP) telephone systems using SIP (Session Initiation Protocol). It has a built-in amplifier and supports Power over Ethernet (PoE), connecting directly to an IP network with a single network cable for communication and power, delivering a high sound pressure exceeding 92 dB while maintaining low power consumption. The speaker comes with pre-recorded audio files and allows users to upload their own audio.

• Explosion-proof speaker design; certified by ATEX standard.
• Material / Colour: Anti-static Polyamide / Black.
• Waterproof and dust proof rating: IP66.
• Service temperature range: -40 °C to +55 °C.
• 360° lossless broadcast capability.
• IP Network Horn Speaker — explosion-proof and waterproof.
• Suitable for public address and paging applications.
• Typical application industries: petroleum, metallurgy, chemical industry, sea oil, nuclear power, shipbuilding, tunnels, and other projects requiring explosion-proof grade speaker.

ATEX type and marking information provided for the explosion-proof certification of the unit.

Designed for live video monitoring and remote announcements. Supports SIP for VoIP integration and PoE for simplified installation. Built-in amplifier provides sufficient sound pressure (over 92 dB) for long-range voice announcements.

Dimension example provided on product page: 413*254*277MM. Installation dimension drawings and frequency response charts are available for system planning.

Unit size: 250 (∅) * 352 (L) mm
Unit G.W.: 3.7 kg
1 pcs in an inside box. Box size: 270 x 270 x 390 mm G.W.: 3.7 kg
2 pcs in a CTN box. CTN box size: 570 x 290 x 420 mm G.W.: 7.8 kg

Typical outdoor and hazardous-area applications including oil & gas sites, industrial plants, shipyards and tunnels where explosion-proof equipment is required.

• Modèle: KNSIPLB-Ex15
• Type: Explosion-proof IP network horn speaker (appearance similar across variants; some variants include built-in transformer)
• Material: Anti-static Polyamide
• Couleur: Black
• Dimensions: 413 x 254 x 277 mm (product main size); unit packing size examples: 250 (∅) x 352 (L) mm
• Poids brut unité: 3.7 kg
• IP rating: IP66 (waterproof and dust proof)
• Service temperature: -40 °C to +55 °C
• Sound pressure: >92 dB (high sound pressure output)
• Audio: Supports pre-recorded files and user-uploaded audio
• Connectivity: SIP (VoIP) compatible; Power over Ethernet (PoE) supported; built-in amplifier
• Applications: Petroleum, metallurgy, chemical industry, offshore oil, nuclear power, shipbuilding, tunnels and other hazardous-area projects
