Borne d'appel IP KNPA800miniR

PoEEthernet4.3"

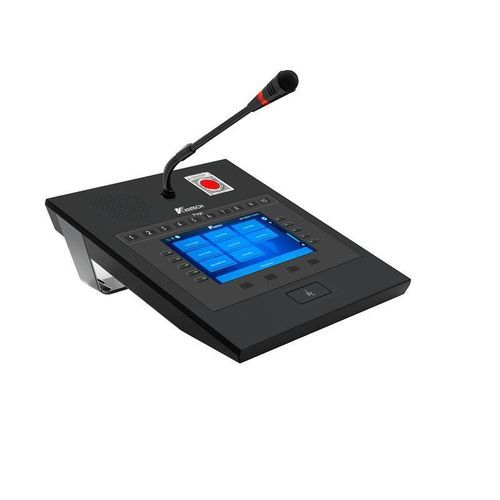

Product Overview
PA Call Station
Model: KNPA800miniR
Size: 213 (L) x 190 (W) x 76 (H) mm (excluding microphone)
Material: ABS (Acrylonitrile Butadiene Styrene)

Features

• 100-zone one-touch paging with a covered red emergency key
• Gooseneck unidirectional microphone with PTT (momentary, non-locking)
• 4.3-inch TFT color display for zone selection, call status and fault indication
• 10 pages × 10 physical paging buttons, 4 function keys, one main paging key
• 3.5mm jack for wireless microphone input
• Power over Ethernet (PoE) operation
• Dual Ethernet ports for network redundancy
• Secure audio/control using AES67 (audio) and AES70 (control)

Key Functional Features & Benefits

• Purpose-built design for professional PA applications and mission-critical environments
• Certified for safety: EN 54-16 and ISO 7240-16 compliance for voice evacuation systems
• 24/7 operational readiness with intelligent power-saving standby features
• User-centric interface: intuitive, vibrant 4.3-inch TFT for simplified operation
• Effortless zone & group selection; expandable display for facility overview
• Visual indicators for power, communication status and push-to-talk activation
• Crystal-clear vocal transmission via professional gooseneck microphone; adjustable microphone sensitivity and volume control
• Software-configurable parametric equalization for acoustic tuning
• Seamless integration of external audio sources via 3.5mm input
• Selective zone, group-zone and all-call paging with scheduling and pre-recorded message playback
• Priority-based audio routing to guarantee emergency announcements override lower-priority audio
• Enterprise-grade reliability and simplified installation (PoE); built-in network redundancy (dual Ethernet)
• Guarded emergency key under safety cover to prevent accidental triggering
• Encrypted and authenticated communications to protect system integrity

Specification (selected details)

• Built-in chime tone: supports automatic chime prior to live paging; configurable enable/disable
• Concurrent live paging: supports simultaneous paging from multiple stations for non-overlapping zones
• Zone conflict handling: priority/occupancy policies (override/queue/restriction) for overlapping requests
• BGM & live paging mixing (ducking) to attenuate background music during announcements
• Zone-based paging with flexible multi-zone selection and quick zone operations
• Mounting: Desktop, Wall mount or Flush (Panel) mount; cut-out dimensions and mounting brackets optional
• IP rating: front panel protection IP22 (minimum, for indoor control room environments)
• Microphone & PTT: gooseneck unidirectional microphone with momentary PTT (release to stop paging)
• Display & indications: 4.3" TFT showing zone selection, call status, system info; status indications for power, operation and faults with acknowledge support
• Cybersecurity: supports IEC 62443 requirements, configurable user privileges and password policies; supports minimizing enabled ports/services and encrypted control via integration with PAGA controller/server
• Area of use: designed for Safe Area control room and operation center applications (for Hazardous Areas use IECEx/ATEX certified field devices)
• Alarm indications: local (on 4.3" TFT) and external via PAGA controller/server integration with acknowledge/mute support

System & Integration
Designed to integrate with PAGA/PA systems and controllers; supports encrypted control and system status monitoring for mission-critical communications. Suitable for zone paging, emergency paging activation and system status monitoring in control rooms and operation centers.

Caractéristiques / spécifications techniques

• Marque: KNTECH
• Modèle: KNPA800miniR
• Dimensions: 213 x 190 x 76 mm (L x W x H) excluding microphone
• Matériau: ABS (Acrylonitrile Butadiene Styrene)
• Certifications: EN 54-16, ISO 7240-16
• Capacité de zones: 100-zone one-touch paging (10 pages × 10 buttons)
• Affichage: 4.3" TFT color display
• Microphone: gooseneck unidirectional with momentary PTT
• Audio/Control standards: AES67 (audio), AES70 (control)
• Connectivité: Dual Ethernet ports, PoE support
• Entrée audio: 3.5 mm jack for external/wireless microphone
• Protection: Front panel IP22 (minimum)
• Montage: Desktop, Wall mount, Flush (Panel) mount
• Emergency key: guarded red emergency key with flip cover and anti-misoperation protection
• PDF manual available for the product (refer to product documentation)
