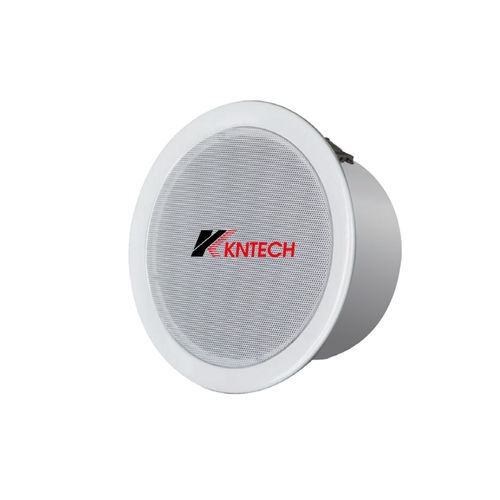

Haut-parleur de plafond KNL9-A-6W

antifeutertiaire

Product
Fireproof Ceiling Speaker

Model
KNL9-A-6W

Size
197*165*98mm

Material
Metal & Fire Rated Metal Rear Cover

Key Features
The loudspeaker shall incorporate a single 12 cm (5\") full range cone-type transducer with a smooth frequency response of 80 Hz to 20kHz measured on axis.
The loudspeaker shall produce a Sound Pressure Level (SPL) of 90 dB on axis at 1 meter with a power input of 1 watt and shall be capable of producing 6 watts (for 100V Line) and 3 watts (for 70V Line) of power.
The loudspeaker shall be fitted with a factory mounted transformer with easy selectable power tappings of 6W, 3W, 1.5W and 0.8W when using 100V Line and 3W, 1.5W, 0.8W and 0.4W when using 70V Line. Push-in-type connectors shall make cable connection quick and easy and shall allow bridge wiring when necessary.
Application: conference rooms, cafes, churches, background music, entertainment venues, home theaters, etc.

Products Dimensions
Refer to product images for dimensional drawing and layout.

Documentation
PDF available: Fireproof Ceiling Speaker[KNL9-A-6W]

Caractéristiques / spécifications techniques

• Model: KNL9-A-6W
• Size: 197*165*98mm
• Material: Metal & Fire Rated Metal Rear Cover
• Transducer: single 12 cm (5\") full range cone-type
• Frequency response: 80 Hz to 20 kHz (measured on axis)
• SPL: 90 dB on axis at 1 m with 1 W input
• Rated power / Line output: 6 W (100V Line) and 3 W (70V Line)
• Transformer taps (100V Line): 6W, 3W, 1.5W, 0.8W
• Transformer taps (70V Line): 3W, 1.5W, 0.8W, 0.4W
• Connection: Push-in type connectors; allows bridge wiring
