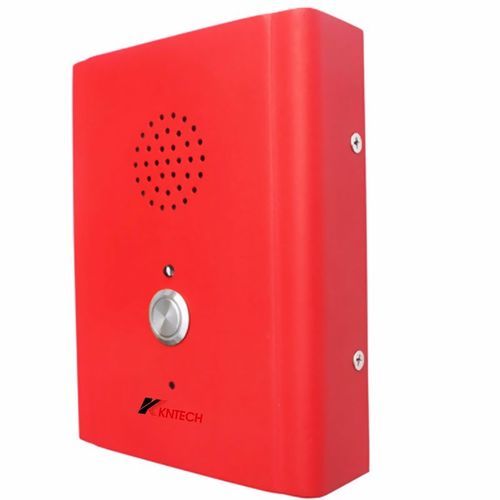

Borne d'appel analogique KNZD-13

VoIPPoEEthernet

ADA Elevator Phone is an emergency call device specifically designed for elevators, available in both Analogue (PSTN) and VoIP SIP versions and fully ADA compliant. It is built for harsh environments with weatherproof and lightning protection features, and can be customized to customer requirements.

Fonctionnalités principales

• One-touch dial: press the emergency call button and the unit automatically connects to the specified phone number.
• Incoming call flashing reminder: LED indicator above the button flashes for incoming calls.
• Automatic connection after a preset number of rings; caller can be connected automatically.
• Automatic hang-up: unit can detect busy tone and hang up to avoid busy lines.
• Cold-roll steel body for easy installation and powder coated with UV stabilized polyester finish.
• Waterproof and dust proof (IP55 standard for general product; IP66 referenced in certifications section).
• Full metal keypad, waterproof and dustproof; metal keypad ensures robustness.
• Full keypad with memory: 10 programmable speed-dial buttons (analogue) and up to 12 groups stored numbers (ZD series functions).
• Heavy duty handset with hearing-aid compatible receiver, noise-cancelling microphone and industrial strong armored handset cord.
• Lightning protection per ITU-T recommendation K.21.
• Optional 7-minute timeout to release line if handset left off-hook (upon buyer's requirement).
• Housing can be covered with reflective label for easy night identification (optional).
• Applications include tunnels, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge, etc.

Documentation

• Analogue and VoIP product PDFs and user manuals are available (see product documents).

Caractéristiques / spécifications techniques

• Model: KNZD-13 (champ modèle renseigné séparément).
• Size (unit): 170 × 130 × 40 mm.
• Material: Cold-roll steel sheets; powder coated UV stabilized polyester finish.
• Ingress protection: IP55 (product); IP66 referenced in certification block.
• Operating temperature: Analogue: -30 ~ +60 °C; general service temperature range: -30 °C to +75 °C.
• MTBF: 100,000 hours; MTTR: 2 hours.
• Analogue (SPECIFICATION-Analogue ZD0130012): PSTN analogue telephone, DTMF dialing, connection via RJ11 screw terminal pair cable (or RJ11 socket/plug upon request), ringing sound level >70 dB(A), maximum loop distance up to 7 KM, applicable to SPC exchanges/PABX with feeding voltage 33–60V.
• VoIP (SPECIFICATION-VoIP ZD0130022): VoIP SIP2.0, DTMF dialing, echo cancellation G.167/G.168, audio codecs G.711/G.722/G.729, IP protocols IPv4/TCP/UDP/TFTP/RTP/RTCP/DHCP/SIP, 10/100 BaseTX Ethernet RJ45, Power over Ethernet IEEE802.3af (Class 0) or local 12V DC power (Idle 2W, Max 10W), 1 aux dry contact output (rated loads: 0.3 A at 125 VAC; 1 A at 30 VDC), full duplex 2-way hands-free communication, non-volatile flash memory programming via Web GUI.
• Packaging & weight: Unit N.W.: 1.5 KG; 1 pcs packing box size: 310 × 240 × 130 mm (N.W. 1.5 KG, G.W. 3.2 KG); 16 pcs per outer carton (outer carton size and gross/net weights provided on product page).
• Certifications / EMC / Standards: EN55022 (emissions), EN55024 (immunity), EN50121 (railway EMC), ITU-T Recommendation K.21 (lightning protection), FCC referenced; GB4208-93 IP66 indicated for ingress protection.
