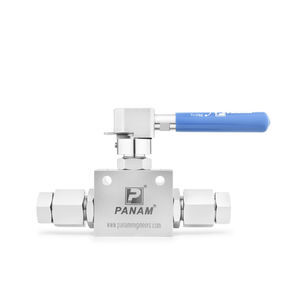

Vanne à pointeau PNV series

à leviermâle-femellefemelle

Aperçu
Les vannes à aiguille Panam série HP en SS 316 sont disponibles en cinq séries de pression (HP, HP1, HP2, HP3, HP6) pour les systèmes fluides et gazeux à haute pression. Types de filetage : NPT, MP Cone et HP Cone. Configurations : droite, angle, 3‑voies et manifold 2‑tiges ; sièges remplaçables pour maintenance.

Séries

• HP
• HP1
• HP2
• HP3
• HP6

Matériau

• SS 316

Pressions nominales

• 10 000 psi (HP)
• 15 000 psi (HP1)
• 20 000 psi (HP2)
• 30 000 psi (HP3)
• 60 000 psi (HP6)

Types de filetage / connexion

• NPT
• MP Cone
• HP Cone

Configurations

• Droite
• Angle
• 3‑voies (2 entrées / 2 sorties)
• Manifold 2‑tiges
• Siège remplaçable

Table produit (Référence | Série | Pression | Taille | Type de connexion | Configuration)
Part Number | Series | Pressure | Size | Connection Type | Configuration
PNV-HP-S-2NF | HP | 10,000 psi | 1/8" | NPT Female to Female | Straight
PNV-HP-S-4NF | HP | 10,000 psi | 1/4" | NPT Female to Female | Straight
PNV-HP-S-6NF | HP | 10,000 psi | 3/8" | NPT Female to Female | Straight
PNV-HP-S-8NF | HP | 10,000 psi | 1/2" | NPT Female to Female | Straight
PNV-HP-S-12NF | HP | 10,000 psi | 3/4" | NPT Female to Female | Straight
PNV-HP-S-16NF | HP | 10,000 psi | 1" | NPT Female to Female | Straight
PNV-HP-S-4NMF | HP | 10,000 psi | 1/4" | NPT Male x Female | Straight
PNV-HP-S-6NMF | HP | 10,000 psi | 3/8" | NPT Male x Female | Straight
PNV-HP-S-8NMF | HP | 10,000 psi | 1/2" | NPT Male x Female | Straight
PNV-HP-S-12NMF | HP | 10,000 psi | 3/4" | NPT Male x Female | Straight
PNV-HP-S-16NMF | HP | 10,000 psi | 1" | NPT Male x Female | Straight
PNV-HP-S-4NF-A | HP | 10,000 psi | 1/4" | NPT Female to Female | Angle Type
PNV-HP-S-6NF-A | HP | 10,000 psi | 3/8" | NPT Female to Female | Angle Type
PNV-HP-S-8NF-A | HP | 10,000 psi | 1/2" | NPT Female to Female | Angle Type
PNV-HP-S-12NF-A | HP | 10,000 psi | 3/4" | NPT Female to Female | Angle Type
PNV-HP-S-16NF-A | HP | 10,000 psi | 1" | NPT Female to Female | Angle Type
PNV-HP-S-4NMF-A | HP | 10,000 psi | 1/4" | NPT Male x Female | Angle Type
PNV-HP-S-6NMF-A | HP | 10,000 psi | 3/8" | NPT Male x Female | Angle Type
PNV-HP-S-8NMF-A | HP | 10,000 psi | 1/2" | NPT Male x Female | Angle Type
PNV-HP-S-12NMF-A | HP | 10,000 psi | 3/4" | NPT Male x Female | Angle Type
PNV-HP-S-16NMF-A | HP | 10,000 psi | 1" | NPT Male x Female | Angle Type
PNV-HP1-S-4NF | HP1 | 15,000 psi | 1/4" | NPT Female to Female | Straight
PNV-HP1-S-6NF | HP1 | 15,000 psi | 3/8" | NPT Female to Female | Straight
PNV-HP1-S-8NF | HP1 | 15,000 psi | 1/2" | NPT Female to Female | Straight
PNV-HP1-S-4NMF | HP1 | 15,000 psi | 1/4" | NPT Male x Female | Straight
PNV-HP1-S-6NMF | HP1 | 15,000 psi | 3/8" | NPT Male x Female | Straight
PNV-HP1-S-8NMF | HP1 | 15,000 psi | 1/2" | NPT Male x Female | Straight
PNV-HP1-S-4NMF-A | HP1 | 15,000 psi | 1/4" | NPT Male x Female | Angle Type
PNV-HP1-S-6NMF-A | HP1 | 15,000 psi | 3/8" | NPT Male x Female | Angle Type
PNV-HP1-S-8NMF-A | HP1 | 15,000 psi | 1/2" | NPT Male x Female | Angle Type

Remarques
103 configurations disponibles dans la famille HP couvrant plusieurs tailles, types de connexion (NPT, MP Cone, HP Cone), configurations de corps (droite, angle), options multi‑port (3‑voies) et manifold, ainsi que sièges remplaçables. Le tableau ci‑dessus présente des références et configurations représentatives.
