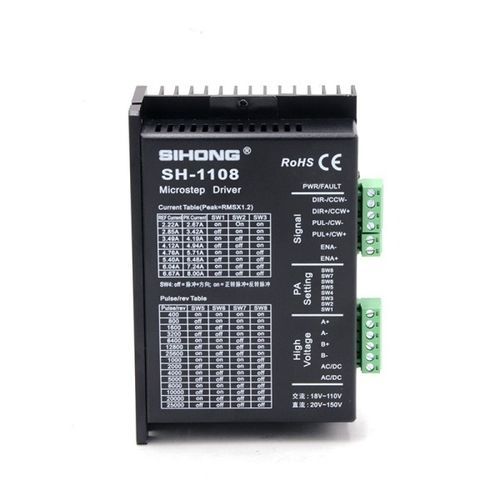

Commande de moteur SH-1108

Input voltage: 18-1100VACMaximum current: 8.0AResolution: 0.1ASubdivision range: 400-51200Difference/single-end, pulse/direction or double-pulse impulse response frequency: 200kHzOn-power parameter automatic setting functionPrecision current control greatly reduces motor heating.Product Details:Electrical index:A. Control signal interface:B. High voltage interface:2. Dial the code set: The SH-1108 driver adopts the eight-bit dial code switch to set the subdivision precision, dynamic current, static half current, as well as achieve the self-setting of motor parameters and internal adjustment parameters.Detailed description is as follows:1) Working (dynamic) current setting:Dial 4, OFF = pulse plus direction mode, ON = double pulse input mode2. Control signal mode setting: SH-1108 driver signal mode is set by three jumpers on the PCB board.3. Controller wiring diagram:4. Installation Dimension:Technical Specifications:Input voltage: 18-1100VACMaximum current: 8.0AResolution: 0.1ASubdivision range: 400-51200Impulse response frequency: 200kHzAutomatic parameter setting functionPrecision current controlEight-bit dial code switch for settingsSignal mode set by PCB jumpers
