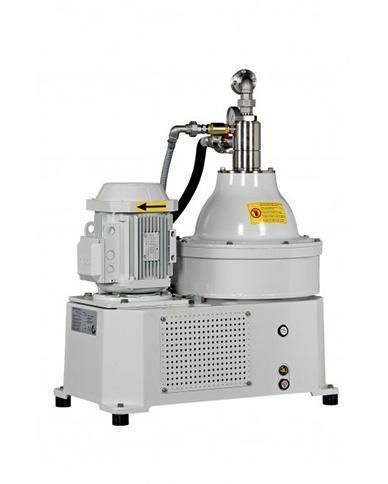

Centrifugeuse de laboratoire

pour applications pharmaceutiquespour l'industrie agroalimentairepour produits pétroliers

Présentation
The MACFUGE disk centrifuges with automatic discharge are designed and built to separate a mixture of liquids having different specific weight and a solid. The bowl “self-cleaning” or “with automatic discharge” means the capacity of the centrifuge to eject the solids, which have been separated from the liquids, using a hydraulic system in the bowl bottom, while running at full speed. These machines are simple and offer different configurations according to process requirements. The MACFUGE centrifuges are reliable, user-friendly, easy to dismount for maintenance and cleaning and allow their use in any process industry that requires fluids separation. They can be manufactured in any material and to work in areas classified CE-ATEX. Within the range of MACFUGE with automatic discharge of small size, there are MACFUGE MODULAR SYSTEMS: complete plug-and-play skid-mounted modules, transportable units for fluids separation, clarification and purification on a small scale.

Operation / Functioning
The product to be separated enters inside of the bowl via fixed feed pipe. The discharging functions are executed at different predetermined time intervals set by the operator through a PLC in the control panel. The opening time (volume discharged) and the discharge frequency are regulated by setting the times of opening and closing of the solenoid valves. Depending on the time setting, the machine can achieve both partial and total discharge of the bowl content. The efficiency depends on mixture characteristics: viscosity, temperature, solids amount and density differences between phases.

Applications

• Power generation
• Oil & Gas
• Marine
• Biodiesel
• Vegetable oils refinery
• Chemical products
• Food products
• Pharmaceutical
• Soaps
• Dairy
• Brew
• Juice

Produits et modèles (extraits)
Macfuge 260
Bowl: Rotation speed 9.600 rpm
Motor: Power 3 Kw
Dimensions: mm 370 X 680 X h. 780

Macfuge 325
Bowl: Rotation speed 8.500 rpm
Motor: Power 5,5 Kw
Dimensions: mm 600 X 900 X h. 1200

Macfuge 450
Bowl: Rotation speed 7.600 rpm
Motor: Power 15 Kw
Dimensions: mm 760 X 1250 X h. 1600

Macfuge 590
Bowl: Rotation speed 5.800 rpm
Motor: Power 22 Kw
Dimensions: mm 1000 X 1500 X h. 2000

Macfuge 680
Bowl: Rotation speed 4.700 rpm
Motor: Power 37÷45 kW
Dimensions: mm 1050 X 2000 X h. 2100

Macfuge 710
Bowl: Rotation speed 4.800 rpm
Motor: Power 30 kW
Dimensions: mm 1300 x 1900 x h. 2300

Macfuge 711
Bowl: Rotation speed 5.300 rpm
Motor: Power 30 kW
Dimensions: mm 1300 X 1900 X h. 2300

Caractéristiques / spécifications techniques

• Self-cleaning bowl with automatic hydraulic discharge (bowl bottom hydraulic ejection of solids while running at full speed)
• PLC-controlled discharge timing and frequency (solenoid valves for opening/closing)
• Configurable opening time (discharged volume) allowing partial or total bowl discharge
• Designed for separation of liquid mixtures with solids based on density differences
• Performance impacted by viscosity, temperature, solids concentration and phase density differences
• Usable in multiple materials of construction; can be supplied for CE-ATEX classified areas
• Modular skid-mounted plug-and-play systems available for small-scale separation and clarification
• Easy disassembly for maintenance and cleaning; user-friendly and reliable design
• Range of models with varying bowl rotation speeds, motor powers and physical dimensions (examples listed above)
