Téléphone analogique KNSP-03-D23

IPPoELAN

Product

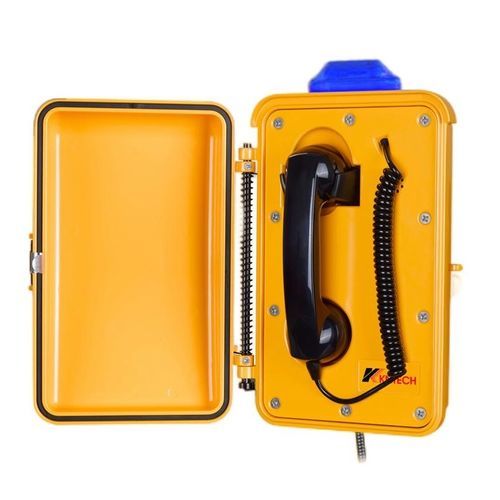

Blue Light Stations. Model: KNSP-03-D23. Size: 320*205*120mm. Material: Aluminum alloy.

Features

• Robust aluminium alloy die-cast body, vandal & tamper-resistant hardware.
• Waterproof rating IP66 dust proof.
• With line powered blue indication lamp.
• Noise canceling microphone; automatic noise filtering for clearer calls. Without keypad, support hotline setting and support scroll dialing.
• Magnetic reed hook-switch.
• DC input overvoltage and overcurrent protection and RJ45 surge protection.
• Heavy Duty handset with hearing aid compatible (HAC) receiver.
• Handset with industrial strong curly cord.
• Door cover: auto-orient and good self-closing, convenient for use.
• Operating temperature range: -40°C to +70°C.
• Support echo cancellation.
• Support remote software upgrade, configuration and monitoring.
• Powder coated in UV stabilized polyester finish.
• Application: Tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge, etc.

Order information (table)
Model number | Power Suppl | Item Number
KNSP-03-IP-Y_AD | DC12V 1A | SP0030052
KNSP-03-IP-Y_P | POE | SP0030022
KNSP-03-IP-Y_ADP | DC12V 1A + POE | SP0030092
*AD = Adapter UL (Input: AC110~240V, Output: DC12V 1A). *P = POE.

Certifications
Australian communications: AS/CA S004
Australian Equipment-safety: AS/NZS 60950.1:2015
RCM: AS/NZS CISPR 32
EMC: EN55032, EN55024, EN61000-3-2

Installation
Unit mounting and dimensional drawing provided; unit size 320*205*120mm. Refer to supplied installation diagrams for positioning and mounting details.

Packaging
Unit size: 320 * 205 * 120 mm. Unit N.W.: 4.86 KG. 1 pcs packing box size: 439 * 277 * 191 mm. Packed unit N.W.: 5.8 KG. 6 pcs in 1 outer carton box size: 730 * 390 * 340 mm. Outer carton N.W.: 36.5 KG (total for 6 units as indicated on source).

Specification (summary)
VoIP SIP 2.0 telephone. DTMF dialing. Audio codecs: G.711, G.726, G.729. MTBF: 100,000 hours. MTTR: 2 hours. Network: 10/100 BaseTX Ethernet, RJ45. Free dial (maximum length of each number: 32 digits). Communication: Full duplex 2-way. IP protocols: IPv4, TCP, UDP, RTP, DHCP, SIP. Call control signaling: SIP Info (DTMF), RFC 2833 (DTMF). LAN Power over Ethernet (PoE, 802.3af) support. 1 x LAN (IEEE 802.3), Network Access. Power: Power over Ethernet IEEE 802.3af Class 0; Local power option 12V DC (Idle 2W, Max 10W). Control: IEEE 802.1x, STP (IEEE 802.1d). RSTP (IEEE 802.1d-2004). Auxiliary Contacts: optional. Programming: Non-volatile flash memory; programming and configuration through Web GUI. 1 Aux Output (dry contact) — rated load: 0.3 A at 125 VAC; 1 A at 30 VDC. Rated carry current: 1 A. Max switching voltage: 125 VAC, 30 VDC. Echo cancellation: ITU-T G.167/G.168.

System
Blue light station is used in industrial telephone systems as an emergency alarm/warning device for outdoor and hazardous industrial locations. It integrates an alarm beacon and a VoIP/analogue telephone function for emergency communications.

Application
Designed for outdoor or industrial use: tunnels, metros, railways, roadsides, marine/offshore, mines, power plants, bridges and other harsh environments.

Detailed pictures
Multi-angle product images and warning light examples are available for visual reference in product documentation.

Caractéristiques / spécifications techniques

• Modèle: KNSP-03-D23
• Dimensions: 320 x 205 x 120 mm
• Matériau: Aluminum alloy (die-cast)
• Indice de protection: IP66
• Température de fonctionnement: -40°C à +70°C
• Alimentation: PoE (802.3af) ou 12V DC (option avec adaptateur)
• Consommation locale: Idle 2W, Max 10W
• Poids net unité: ~4.86 kg
• Handset: heavy duty with HAC receiver and industrial curly cord
• Protection: DC input overvoltage/overcurrent and RJ45 surge protection
• Communication: SIP/VoIP, full duplex 2-way
• Audio codecs: G.711, G.726, G.729
• Echo cancellation: ITU-T G.167 / G.168
• Auxiliary: 1 aux dry contact output (option)
• Montage: surface/column mount options for outdoor/industrial deployment
