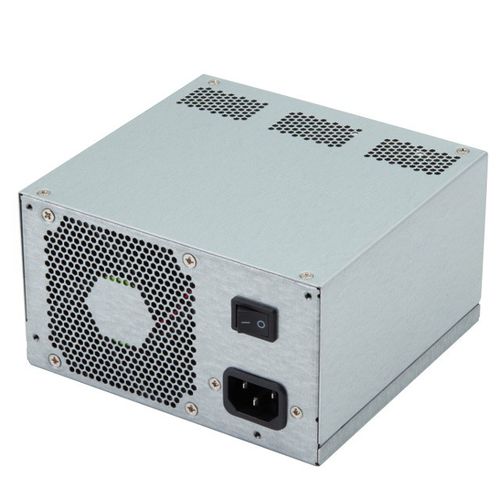

Alimentation électrique AC/DC FSP400-80AAB
à découpageavec protection contre la surchauffeavec protection contre les surintensités

alimentation électrique AC/DC
alimentation électrique AC/DC
Ajouter à mes favoris
Ajouter au comparateur


Caractéristiques

Type
AC/DC
Technologie
à découpage
Protection
avec protection contre la surchauffe, avec protection contre les surintensités
Montage
pour circuit imprimé
Applications
pour PC industriel, pour applications industrielles
Autres caractéristiques
à faible niveau de bruit
Tension d'entrée

Min: 90 V

Max: 264 V

Tension de sortie

-12 V, 3,3 V, 5 V, 12 V, 24 V

Courant

Min: 0 A

Max: 18 A

Puissance

400 W

Description

Feature Internal 8 cm fan at output side for better acoustic quality Low Ripple & Noise Support OCP, OTP and OVP circuit protection Short circuit protection on all outputs Resettable power shut down 100% Hi-pot tested MTBF:100K hours at 25°C 100% burn-in under high ambient temperature (50°C) Introduction FSP400-80AAB is an industrial level of switching power supply. The power supply comes to offer the total power capacity up to 400W, and provides one extra 24Vdc output, which makes it to be perfectly used for IPC system with motor or printer environment. In addition, the power supply is ideally the best choice for ATM, POS, KIOSK or any other system with printer applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
