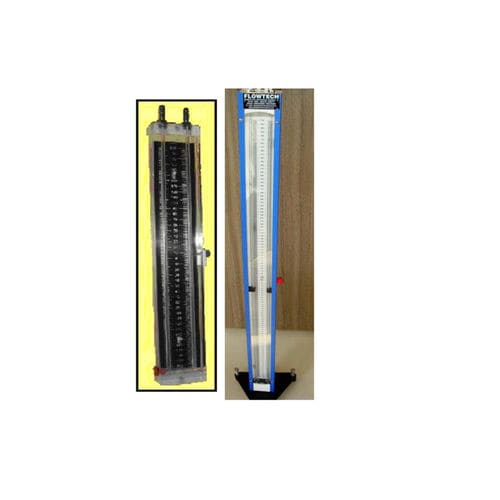

Débitmètre à pression différentielle FMIPL-UTRM-01
pour liquidesverticalen aluminium

débitmètre à pression différentielle
débitmètre à pression différentielle
débitmètre à pression différentielle
Ajouter à mes favoris
Ajouter au comparateur


Caractéristiques

Technologie
à pression différentielle
Fluide
pour liquides
Montage
vertical
Matériau
en aluminium, en PVC, en polypropylène, en verre
Application
industriel
Autres caractéristiques
de précision, économique
Débit volumique

Max: 500 m³/h
(17 657,3 ft³/h)

Min: 50 m³/h
(1 765,7 ft³/h)

Température de process

Max: 90 °C
(194 °F)

Min: 0 °C
(32 °F)

Pression de process

Max: 1 bar
(14,5 psi)

Min: 0 bar
(0 psi)

Description

U-Tube Manometer Manufacturers, Supplier, Exporter, Trader, Dealer DESCRIPTION: “FLOWTECH” make U-Tube manometer is used for precision measurement of pressure, vaccum, differential pressure, and flow measurement in plants & labs where certain accuracy is required. MATERIALS OF CONSTRUCTION Metering Tube: : Special uniform bare thick walled borosilicate glass tube Packing: Teflon / Neoprene Casing: M.S. /Aluminum Casing from three sides and aluminum cover with transparent acrylic front. Scale: Scale milky white PVC with Black Color Lining and figures Painting: Industrial Grade painted / Powder coated A U-Tube Manometer is a device in which column of liquid is used for measuring pressure. Presssure is measured taking into consideration the difference between two liquid levels. “P.S” U-Tube Manometer are accurate, Simple and economical instruments for measurement of positive pressure, negative pressure, differential pressure, vacuum, flow etc. U-tube manometers indicates pressure as vertical distance from the top of the fluid in one leg to the top of fluid in the other leg. Manometers are available with wall mounting arrangement & stand mounting arrangement. Technical Specification: “U” Tube type Primary standard Manometer used for precision measurement of pressure, vacuum, differential pressure, and flow measurement in plants and labs where certain accuracy is required.

Catalogues

Aucun catalogue n’est disponible pour ce produit.

Voir tous les catalogues de Flowtech Measuring Instruments Pvt. Ltd.
