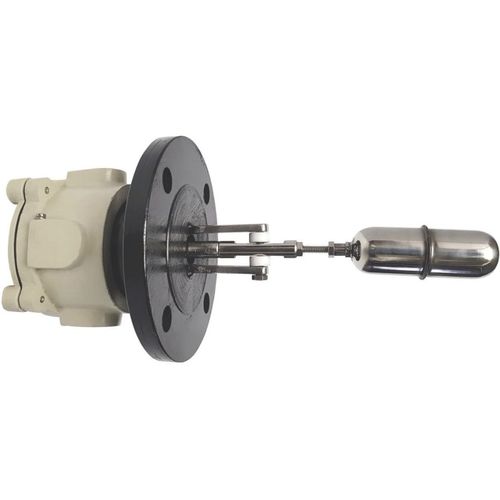

Détecteur de niveau à flotteur magnétique FMIPL
de liquidepour réservoirpour produits chimiques

détecteur de niveau à flotteur magnétique
détecteur de niveau à flotteur magnétique
détecteur de niveau à flotteur magnétique
détecteur de niveau à flotteur magnétique
Ajouter à mes favoris
Ajouter au comparateur


Caractéristiques

Technologie
à flotteur magnétique
Media
de liquide
Applications
pour réservoir, pour produits chimiques, pour l'industrie agroalimentaire, pour applications sanitaires, pour zone dangereuse, pour applications marines, ultra haute pureté (UHP)
Materiaux
en acier inoxydable
Montage
horizontal, à bride, à montage latéral
Autres caractéristiques
sans entretien, de haute précision, avec tube de protection, à faible niveau
Température de process

Min: 40 °C
(104 °F)

Max: 150 °C
(302 °F)

Pression de process

Min: 5 bar
(72,52 psi)

Max: 20 bar
(290,08 psi)

Description

“FLOWTECH” offers float operated High Temperature Side Mounted Level Switch for high temperature applications. This is intended for controlling liquid level at High OR Low OR any point throughout the Tank height using Micro Switches. The Unit Consists of Metallic Float, Float Rod, Flanges, Cooling Fins,Micro Switches are located inside Housing. Principle of Side Mounted Level Switch Simple theory as liquid buoyancy is utilized for the main principle of this “FF” series. A change of liquid level correspondingly travels the float to extreme levels up and down. The reed switch is thus “NC” and “NO” exchanged as well as the permanent magnet on pivot will have mutual repellence to the other one inside on the housing for like poles, which the Micro switch is button-pushed by magnet to states “NO” and “NC” exchanging likewise. Side Mounted Level Switch Manufacturers We are experts in offering a wide range of Side Mounted Level Switches which offer great reliability and performance. These can be used effortlessly for high, low and middle point level switching applications. We can offer these products in various sizes and configurations with easy moving pivoted float assembly. These prdoucts are used extensively by our clients and deliver exceptional value for money.
