Scelleuse à air chaud SM series

semi-automatiquepour denrées alimentairesde sacs

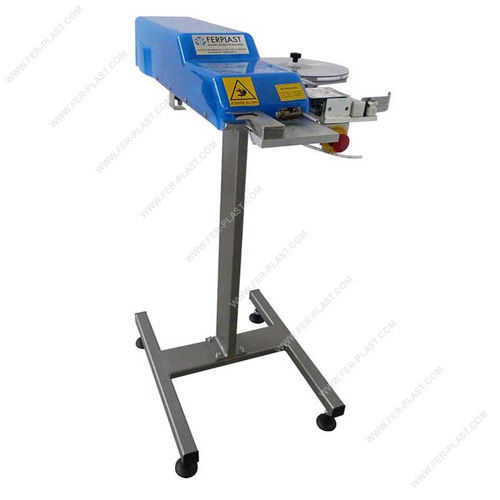

Pneumatic Sealer SM 35/40 A - With Date PunchPneumatic sealer SM 35/40 A for closing bags made of any material using an aluminum plate with a height of 5/7 mm. All contact parts are made of AISI 304 stainless steel suitable for food contact.The seal is made from a high-autonomy coil, cut to a length of 35/40 mm, wrapped around the neck of the bag, and finally pressed to form a flat closure.The machine is configured for a kit that can be purchased at the time of order, which includes a dater and numeric punches.Available in the following models:SM 35 A 5: Aluminum seal width 5 mm - thickness 0.6 mm - length 35 mmSM 40 A 7: Aluminum seal width 7 mm - thickness 0.6 mm - length 40 mmMODELSM 35 A - 5 mmSM 40 A - 7 mmPower supplyPneumaticPneumaticAir consumption50 liters/minute50 liters/minuteOperating pressure6 bar6 barMaximum closing speed30 pcs/min30 pcs/minAluminum seal dimensionsWidth 5 mmThickness 0.6 mmLength 35 mmWidth 7 mmThickness 0.6 mmLength 40 mmAutonomyabout 2800 closuresabout 2500 closuresAluminum strip length100 m100 mDater with1 line of writing per day/month/year or batch2 lines of writing per day/month/year and batchType of closureFlat, aesthetically elegant sealMachine dimensions600x500x990h mm600x500x990h mmMachine weight45 kg45 kgPrinting line12Punches included in the optional kitThe characters included in the kit are those indicated in the following table (numeric) with a height of 2.5 mm.The characters are only sold in complete kits. It is not possible to request individual characters.STANDARD CHARACTERSQUANTITY N°STANDARD CHARACTERSQUANTITY N°04521462257232824292Pneumatic sealer for closing bags with aluminum stripAll contact parts in AISI 304 stainless steel, suitable for food contactSeal made from a high-autonomy coil, cut to length, wrapped, and pressedOptional kit with dater and numeric punchesAvailable models: SM 35 A 5 (5 mm width, 35 mm length), SM 40 A 7 (7 mm width, 40 mm length)Power supply: PneumaticAir consumption: 50 liters/minuteOperating pressure: 6 barMaximum closing speed: 30 pcs/minAutonomy: about 2800 (SM 35 A 5) or 2500 (SM 40 A 7) closuresAluminum strip length: 100 mMachine dimensions: 600x500x990h mmMachine weight: 45 kg
