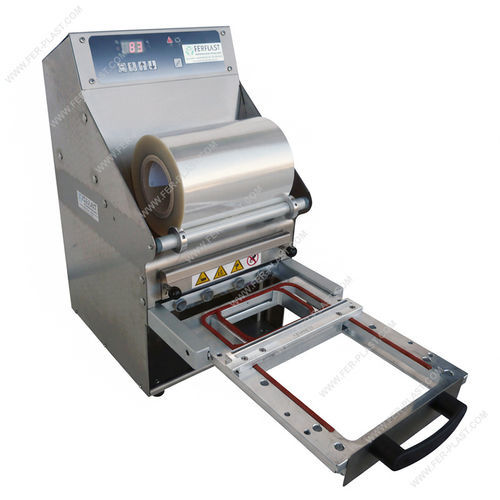

Scelleuse à air chaud FP SM-A series

semi-automatiquepour denrées alimentairespour thermostat

THERMOSEALERS SEMI-AUTOMATIC FOR SEALING PREFORMED TRAYS - FP SM-A SERIESFP SM-A semi-automatic thermosealers are suitable for packaging food in preformed trays with a plastic sealing film in PP, PET, PS, PE.They are ideal for delicatessens, hypermarkets, grocery stores, craft workshops, and catering.All machines are made of stainless steel and anodized aluminum.The work process is timed and electrically controlled; functions are managed via the digital panel.Standard machines operate with 220V power supply, models with 120V power supply are available on request.MODELS AND APPROXIMATE PRICESThe 3 models listed on this web page can seal plastic film on different tray sizes, depending on the installed mold.The indicated price includes the thermosealer and 1 standard fixed mold with 1 cavity.On request, we can send you a quote for the thermosealer equipped with special molds and various accessories.OPERATION:The operator must position the tray in the mold and push the mold into the thermosealer.Then, the machine will automatically seal the film onto the tray.An acoustic signal warns the operator at the end of the cycle and, once the mold is removed, it will be possible to extract the sealed trays.In this series of thermosealers, the film is welded onto the tray but is not cut.If a film wider than the tray is used, the operator must finish the job by trimming it manually.AVAILABLE MODELS:FP SM-101A: semi-automatic manual thermosealer for trays with maximum dimensions 205x150x100h mmFP SM-102A: semi-automatic manual thermosealer for trays with maximum dimensions 260x195x155h mmFP SM-105A: semi-automatic manual thermosealer for trays with maximum dimensions 370x280x155h mmGiven the above measurements, it is possible to manufacture multi-tray molds.For example, in the FPSM105A model, it is possible to create up to 4/6 holes in the mold and simultaneously seal 4/6 trays.MODELFP SM-101AFP SM-102AFP SM-105ADimensions240x390 h. 500 mm295x450 h. 555 mm460x510 h. 555Voltage220 V220 V220 VPower550 W700 W1400 WWeight20 Kg25 Kg35 KgMax. reel dimensionsL=150 diameter 160 mmL=210 diameter 200 mmL=380 diameter 200 mmMax. tray dimensions205x150 mm260x195 mm370x280 mmMax. tray depth100 mm155 mm155 mmCustomizable welding programs999Cycles per minute6-86-86-8Machine features:Designed for packaging in preformed trays of different sizes with compatible sealing films.Made of stainless steel and anodized aluminum.Sealing plate in aluminum coated with Teflon.Nine storable welding programs.Electronic control of the sealing plate temperature (0-200 °C).Acoustic and light alarm signal at the end of the cycle.Automatic motorized welding, powered only by electricity.The welding cycle is automatically activated when the mold is fully inserted.Quick and easy format change.The coating film reel is placed at the front of the machine and unwinds automatically when the mold is manually inserted.USABLE MOLDS:The thermosealers can use two different types of molds, "adjustable" molds and "fixed non-punchable" molds:FPSM-101AFPSM-102AFPSM-105A- Adjustable type 1- Fixed with 1 cavity- Fixed with 2 cavities- Adjustable type 1- Adjustable type 2- Adjustable type Plus- Fixed with 1 cavity- Fixed with 2 cavities- Fixed with 4 cavities- Adjustable type 1 double - 2 trays- Adjustable type 2- Adjustable type 2 Plus- Fixed with 1 cavity- Fixed with 2 cavities- Fixed with 4 cavities- Fixed with 6 cavitiesWhile "fixed molds" are specially made according to the size of the trays, adjustable molds are adaptable to different tray sizes.The "adjustable" molds are available in the following types:- type 1 is suitable for sealing trays of dimensions mm. 190x137 - 137x125 - 137x95- type 2 is suitable for sealing trays of dimensions mm. 260x190 - 230x190 - 190x137 - 137x95- type Plus suitable for sealing trays of dimensions mm. 260x190 - 230x190 - 190x137 - 137x125 - 137x95- type 1 double suitable for sealing 2 trays of dimensions mm. 190x137 - 137x125 - 137x95THERMOSEALER FILM:The film for thermosealers is available in the following materials:PET-PP: for polypropylene trays for microwave cookingPET-PE: for polypropylene and cardboard traysMelinex: for cardboard trays for traditional oven and microwave cookingOPTIONAL- Drilling unit: ideal for creating a series of holes on the film, allowing the product to breathe inside the tray- Front cutting to separate the central film between two trays (only FP SM-102A/FP SM-105A models)- Film protector to protect the film reel from dirt and impurities (FP SM-102A model only)- Carbon-nitrogen washing system (FP SM-102A/FP SM-105A models only)The FP SM-102/105A models can be equipped with the tray washing system. This option introduces nitrogen/carbon into the trays, washes them, and increases the product's storage times.Technical Specifications / Features:Models: FP SM-101A, FP SM-102A, FP SM-105ADimensions (WxDxH): 240x390x500 mm (101A), 295x450x555 mm (102A), 460x510x555 mm (105A)Voltage: 220 VPower: 550 W (101A), 700 W (102A), 1400 W (105A)Weight: 20 kg (101A), 25 kg (102A), 35 kg (105A)Max. reel size: L=150/210/380 mm, diameter 160/200 mmMax. tray size: 205x150 mm (101A), 260x195 mm (102A), 370x280 mm (105A)Max. tray depth: 100 mm (101A), 155 mm (102A/105A)Customizable welding programs: 9Cycles per minute: 6-8Material: Stainless steel and anodized aluminumElectronic temperature control (0-200°C)Acoustic and light alarm at end of cycleAutomatic motorized weldingQuick format changeFront film reel placement
