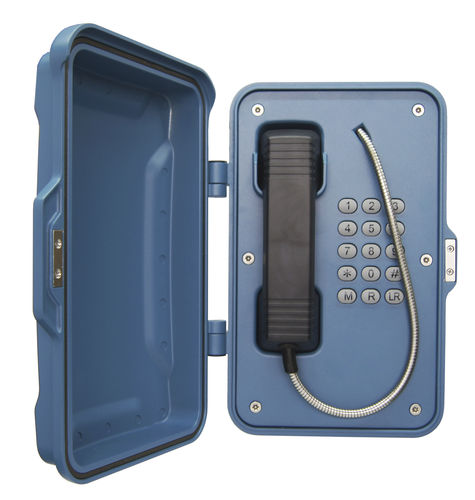

téléphone analogique / IP67 / pour applications ferroviaires / pour tunnel
JR101-FK J&R Technology Ltd

{{requestButtons}}

Caractéristiques

  • Réseau:

    analogique

  • Indice de protection:

    IP67

  • Applications:

    pour applications ferroviaires, pour tunnel, pour voirie, pour applications marines, pour mine souterraine, industriel

  • Autres caractéristiques:

    d'urgence, help point, résistant aux intempéries, mural, en acier inoxydable, pour environnement sévère, d'extérieur, résistant à la corrosion

  • Niveau sonore:

    Max: 90 dB

    Min: 75 dB

    80 dB

Description


Weather Resistant Telephones/hazardous area phones

As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.
Standard Analogue phone
Robust construction, Vandal resistant
All weather protection IP66-67
Tamper resistant fixings
Simple installation
Fast-fit terminal connection
Various mounting option spointer Full Keypad
Can be programmed remotely by tone phone or locally via keypad
Non-volatile memory
Telephone line powered
Weatherproof and corrosion resistant handset
Stainless steel armoured handset cord
Full keypad with memory, 0-9 buttons can be programmed as speed dial button.(Optional)
“LR” button for last number redial
“R” for flash recall
“M” for muting
Wall mounting, Simple installation
Inductive coupler fitted as standard for hard of hearing
Phone line powered (Analogue)

TECHNICAL SPECIFICATIONS
Temperature
Operating: -30°C to +65°C
Storing: -40°C to +75°C
Ringing Tone
Shrill warble tone 80 dBA @ 1 metre typical
M.T.B.F.
Calculated to have an M.T.B.F. in excess of 50,000 hours using
Dialing
MF (tone)
Lightning / Transients
Protection to ITU-T k.21 enhanced levels
CE, FCC,ISO9001,ROSH compliant
